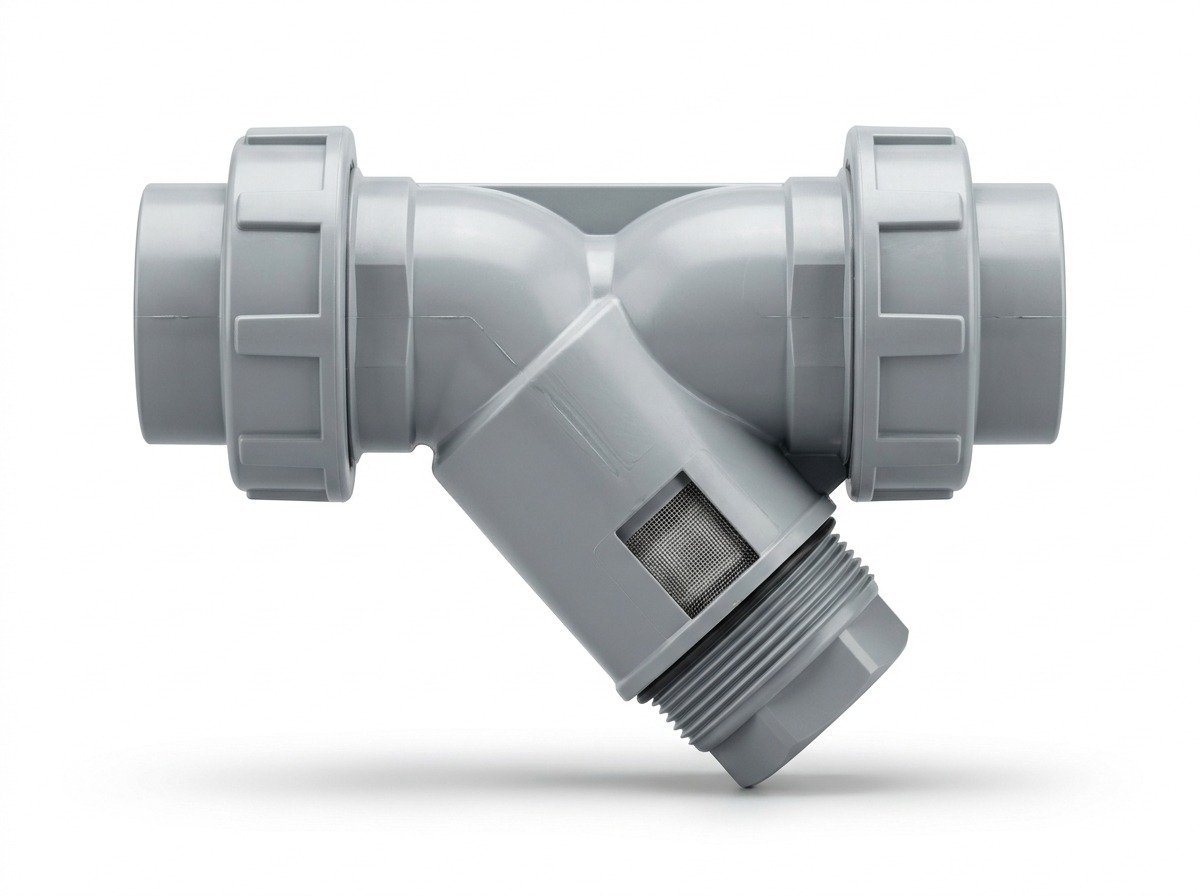

Industrial CPVC Y-Strainers & Chemical Pipeline Strainers
Nikunj Fibre Glass is a leading manufacturer of CPVC Y-Strainers in Vapi, Gujarat. Installed upstream of expensive pumps, control valves, spray nozzles, and flow instrumentation, our CPVC Y-strainers remove particulate solids, scale, and foreign debris from aggressive liquid pipelines, ensuring continuous, damage-free plant operations.
Key Design Features
- Compact Streamlined Y-Body: Minimizes turbulence and optimizes flow capacity with low pressure drop.
- Heavy-Duty Removable Filter Screen: High-grade ETFE, PP, or CPVC perforated mesh screen (20 to 100 mesh standard) effectively traps particles without blinding.
- Easy In-Line Cleanout: Ergonomic threaded cap allows fast screen removal, flushing, and reinstallation without disconnecting the strainer from the pipeline.
- True Union or Flanged Ends: Available with true union socket ends for easy installation and removal.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Body Material | Chlorinated Polyvinyl Chloride (CPVC Industrial Compound) |
| Size Range | 1/2″ (15 mm) to 4″ (100 mm) NB |
| Screen Mesh Rating | 20 Mesh, 40 Mesh, 80 Mesh (Custom micron ratings available) |
| Screen Material | CPVC / PP Perforated Sheet / ETFE Monofilament Mesh |
| O-Ring Gasket | EPDM or Viton / FKM |
| Pressure Rating | PN10 to PN16 (150 to 232 PSI) |
| Maximum Temperature | Up to 93°C (200°F) |
Industrial Applications
Protection of dosing pumps, heat exchanger loops, spray scrubber nozzles, cooling tower loops, and acid pickling circulation lines throughout Gujarat’s chemical manufacturing centers.
Suresh M. Solanki (verified owner) –
Installed upstream of magnetic drive chemical pumps. The removable CPVC mesh screen catches pipe debris effectively. Threaded hex cap allows quick cleaning during weekly rounds.
