ABOUT NIKUNJ FIBRE GLASS
Pioneering Corrosion Engineering & Fiberglass Fabrication Since 1991
Founded in 1991 by Mr. Narottambhai M. Prajapati, a qualified Mechanical Engineer and visionary technocrat, Nikunj Fibre Glass has evolved into one of India’s most respected manufacturers of corrosion-resistant industrial process equipment and composite vessels.
Operating from the heart of Gujarat’s chemical manufacturing capital in Vapi, we specialize in high-integrity fluid handling systems for the world’s most hostile operating conditions. From concentrated Hydrochloric and Sulfuric acid tanks to complex multi-stage air pollution scrubbers, our custom-engineered solutions protect plant infrastructure, ensure workforce safety, and eliminate downtime.
"Quality is not an accident; it is the result of intelligent engineering, rigorous material science, and uncompromising craftsmanship."
State-of-the-Art Fabrication & Testing Works
Our 35,000+ sq. ft. facility in Vapi GIDC is equipped with purpose-built machinery to deliver industrial equipment of unmatched mechanical strength and chemical durability.
Vessels up to 100 KL

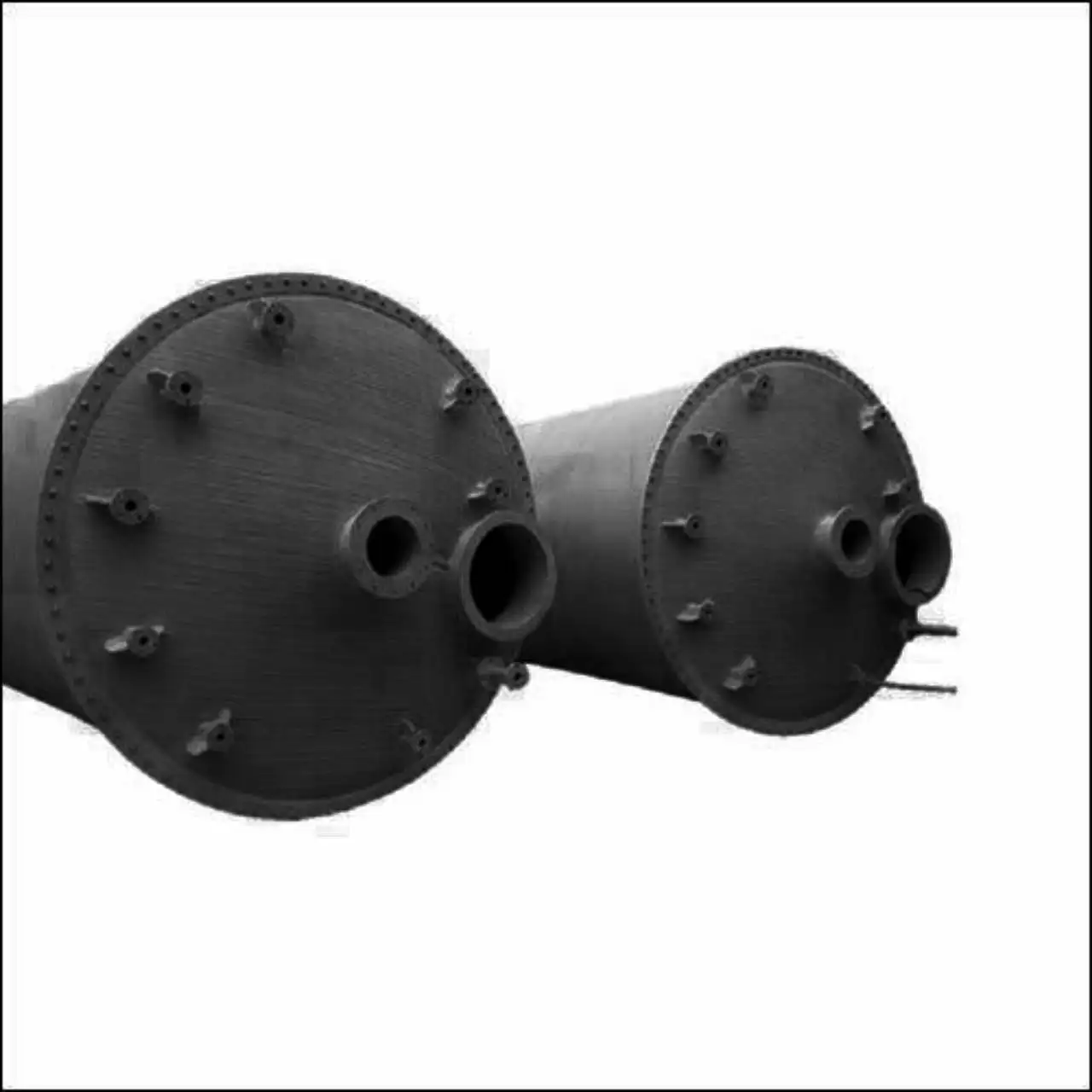

Automated Filament Winding & Contact Molding
Helical filament winding machinery ensures high-tensile glass roving is deposited under continuous uniform tension, creating monolithic cylindrical shells with optimum 65:35 glass-to-resin ratio and superior hoop stress resistance.
- Vertical & horizontal vessels up to 4.5m diameter
- Dish, conical, and flat bottom configurations
- Internal and external chemical barriers
ISO 1940 Grade G2.5
Computerized Dynamic Balancing Bay
Industrial FRP and PP impellers undergo dual-plane dynamic balancing on computerized test rigs to eliminate vibration forces below 1.8 mm/s, dramatically prolonging motor bearing life during 24/7 continuous chemical plant duty.
- Balancing for operating speeds up to 3,000 RPM
- Impeller diameters from 300 mm to 1,600 mm
- Complete ISO 1940 test compliance certificate
Heavy-Duty Pickling
Dual Laminate Extrusion Welding Bay
Equipped with high-temperature extrusion welders, butt fusion machines, and spark testing stations for PP, PVDF, CPVC, and HDPE inner liners. Encapsulated with heavy-duty structural steel box sections for extreme structural loads.
- Wire galvanizing & steel pipe pickling tanks
- High-voltage spark testing (15 kV - 25 kV)
- Anti-impact UHMWPE wear plates
Tailored Material Systems & Chemistry
We select and formulate raw resins and thermoplastic liners based on precise chemical concentration, operating temperature, vacuum requirements, and corrosion kinetics.
Vinyl Ester Resins
Derakane 411 and 470 novolac resins provide outstanding resistance to boiling acids, wet chlorine, aggressive solvents, and severe thermal cycling up to 130°C.
PP-FRP & PVDF-FRP
Combines the complete chemical inertness of Kynar® PVDF or Polypropylene liners with the high tensile strength and pressure containment of composite glass reinforcement.
Isophthalic Resins
High-performance resin system tailored for structural cooling tower parts, rainwater drainage gutters, cable trays, and dilute industrial acid/alkali handling.
HDPE & CPVC Schedule 80
PE 100 spiral wound pipes, electrofusion fittings, CPVC Schedule 80/40 pipes, and molded chemical valves for high-pressure process distribution.
Rigorous 4-Stage Quality Inspection
Every fabricated piece of equipment is verified through non-destructive and hydrostatic testing protocols before leaving our factory.
Raw Material Verification
Inspection of virgin resin viscosity, promoter ratios, and tensile strength of E-glass/ECR-glass roving upon arrival.
Barcol Hardness (ASTM D2583)
Verification of complete resin cure and polymerization across structural walls and inner corrosion barriers (min. 35-45 Barcol).
High-Voltage Spark Testing
15 kV to 25 kV electrostatic spark testing across 100% of thermoplastic welds and liners to guarantee zero pinholes.
Hydrostatic Pressure & Vacuum
Tanks undergo full water filling at 1.25x-1.5x design head; vacuum receivers tested under -760 mm Hg full vacuum.
Trusted Across India's Core Industries
Providing critical corrosion protection to chemical clusters in Vapi, Ankleshwar, Dahej, Vadodara, and nationwide.
Chemical & Petrochemicals
HCl, H2SO4, NaOH storage tanks, packed scrubbers, reaction vessels.
Dyes, Intermediates & Pigments
High-abrasion slurry handling, acid filtration, vacuum receivers.
Pharmaceuticals & Bulk API
High-purity PVDF dual-laminate vessels, solvent extraction ducting.
Steel Wire Galvanizing & Pickling
Heavy-duty wire pickling tanks, lip fume extraction hoods, blowers.
Water & Effluent Treatment (ETP)
Acid neutralization tanks, aeration blowers, underground sumps.
Power & Cooling Towers
PVC/ABS fills, drift eliminators, clog-free polypropylene nozzles.
