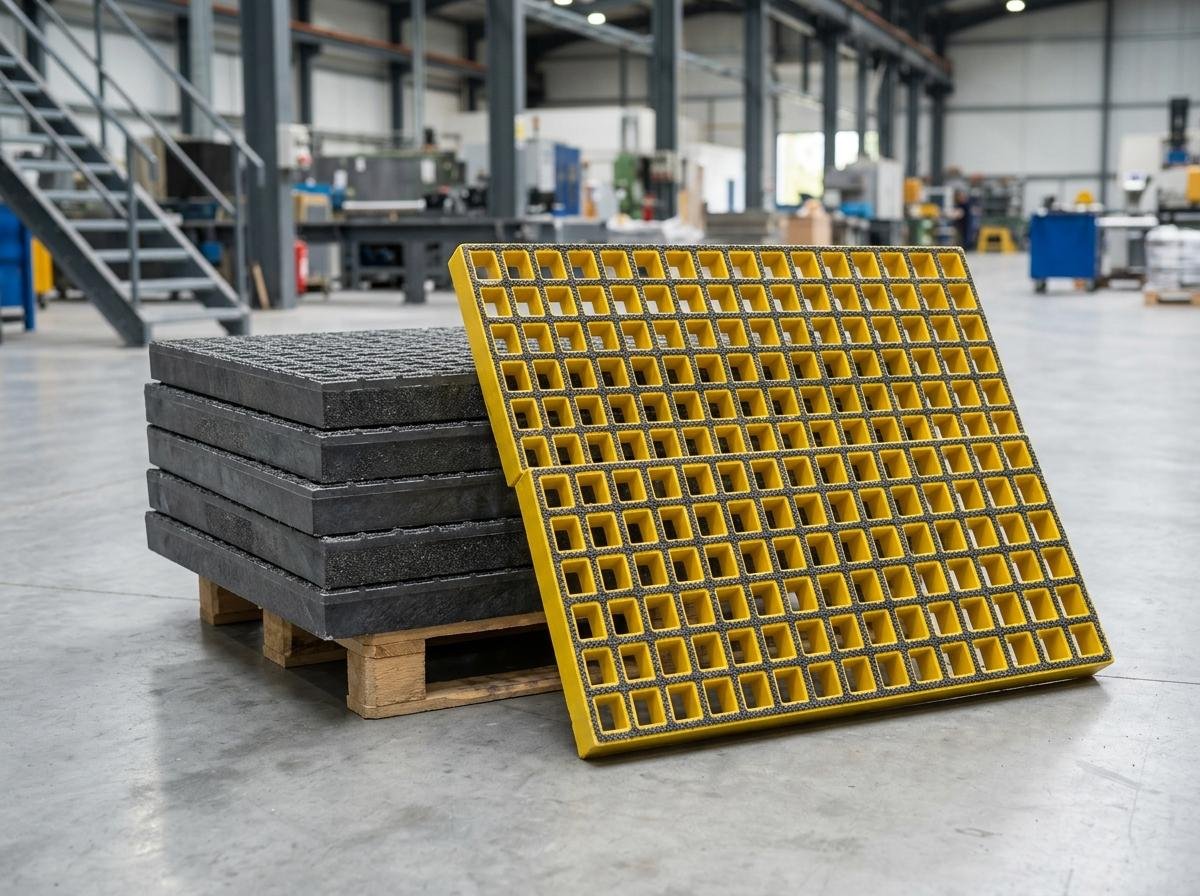

Industrial FRP Molded & Pultruded Gratings Manufacturer in Gujarat
Nikunj Fibre Glass is a leading manufacturer and supplier of FRP Gratings (Fiberglass Floor Gratings, Walkway Platforms & Trench Covers) based in Vapi, Gujarat. Engineered specifically for harsh chemical plants, offshore platforms, wastewater treatment facilities, and electroplating shops, our FRP gratings provide an indestructible, lightweight, and slip-resistant alternative to steel and galvanized gratings.
Manufactured using high-load bi-directional continuous fiberglass rovings encapsulated in premium thermosetting polyester or vinyl ester resins, our gratings conform to BS 4592, ASTM E84, and OSHA slip-resistance standards.
Key Features & Advantages
- Permanent Corrosion Resistance: Withstands continuous exposure to hot acid fumes, chemical washdowns, seawater, and caustic chemicals.
- Superior Bi-Directional Strength: Square mesh molded grating distributes concentrated loads equally in both directions for maximum safety.
- Anti-Slip Grit Surface: Embedded quartz grit or concave meniscus surface provides exceptional slip resistance even when coated in wet oils and chemicals.
- Electrically Non-Conductive & Non-Sparking: Guarantees electrical worker safety around substations and eliminates sparks in explosive zones.
- Effortless On-Site Fabrication: Lightweight panels can be cut to fit circular pipe penetrations using handheld circular saws without hot-work permits.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Standard Panel Sizes | 1,220 mm x 3,660 mm (4′ x 12′), 1,000 mm x 4,000 mm |
| Thickness / Depth | 25 mm (1″), 30 mm, 38 mm (1.5″), 50 mm (2″) |
| Mesh Pattern | 38 mm x 38 mm square mesh, 50 mm x 50 mm, or 19 mm x 19 mm micro-mesh |
| Surface Finish | Meniscus (concave) or Embedded Quartz Grit (Anti-Skid) |
| Resin Matrix | Isophthalic Polyester (Standard Industrial) / Vinyl Ester (High Chemical / Fire Retardant) |
| Standard Colors | Industrial Yellow, Dark Grey, Light Grey, Safety Green |
Industrial Applications
- ✅ Chemical & Pharmaceutical Walkways: Elevated catwalks, reactor access platforms, and stair treads.
- ✅ Effluent Treatment Plants (ETP / STP): Clarifier walkways, bridge decks, and aerated tank covers.
- ✅ Electroplating & Pickling Plants: Trench drain covers beneath pickling lines where acids drip continuously.
- ✅ Marine & Offshore Oil Rigs: Drilling platforms, splash zone walkways, and helideck perimeters.
Frequently Asked Questions (FAQ)
Q1: What load capacity do 38 mm FRP gratings support?
A standard 38 mm thick grating supported at a 900 mm span easily supports uniform loads exceeding 1,200 kg/m² with minimal deflection, fully complying with OSHA industrial walkway guidelines.
Q2: How are FRP gratings fastened down?
We supply specialized 316 stainless steel M-clips, C-clips, and G-clamps that clamp the grating directly onto structural steel or FRP beam flanges without drilling.
