Description

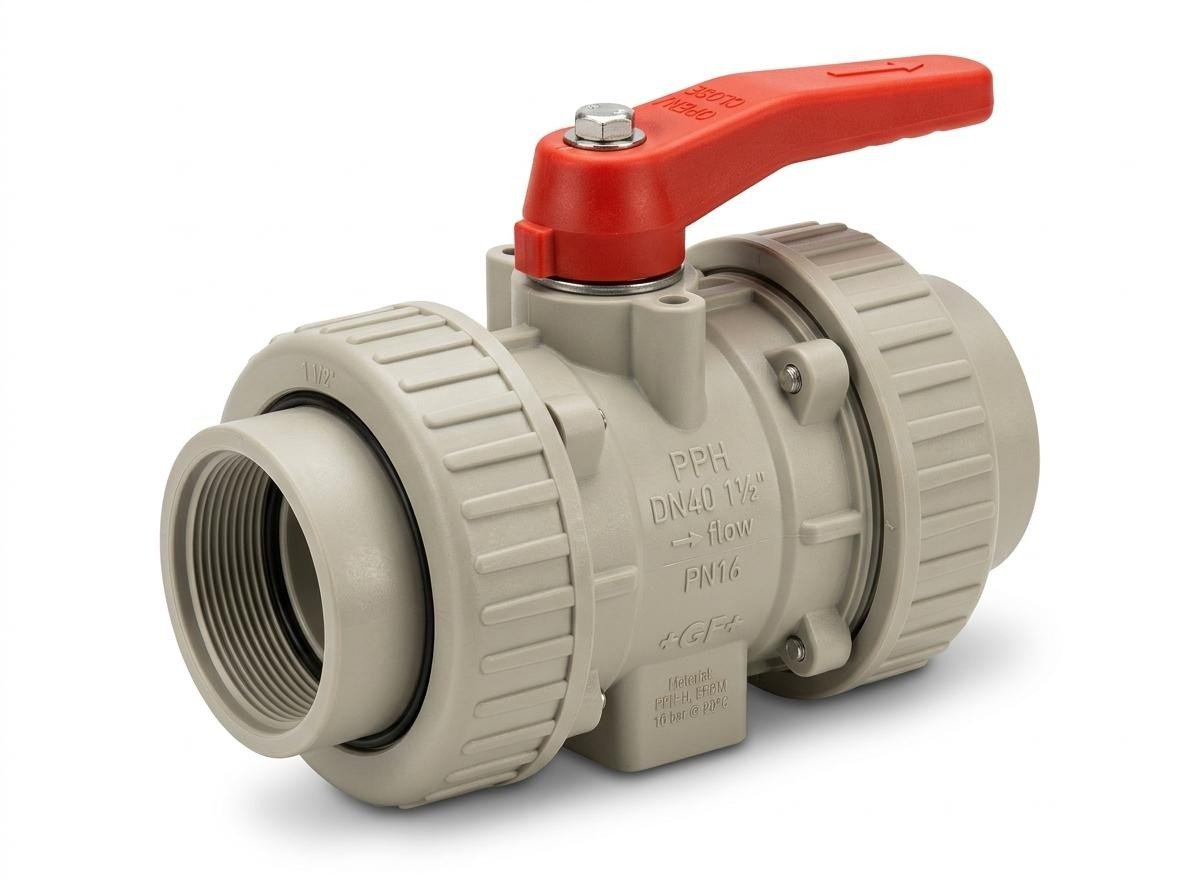

Industrial PP Ball Valves for Corrosive Fluid Control
Nikunj Fibre Glass manufactures high-reliability PP Ball Valves (Polypropylene Industrial Valves) in Vapi, Gujarat. Specially engineered to replace costly specialty alloy valves (such as Hastelloy and Titanium), our PP ball valves offer exceptional resistance against harsh chemicals, hot acids, and industrial solvents.
Key Features & Specifications
- Pure Virgin PP Construction: Precision injection molded body ensuring high pressure ratings and impact strength.
- PTFE Teflon Seats: Self-lubricating PTFE ball seats and FKM/EPDM O-rings ensure bubble-tight shut-off with minimal operating torque.
- End Connection Options: Flanged end (as per ANSI 150# / DIN / BS 10 Table D/E) and screwed BSP/NPT threaded ends.
- Quarter Turn Operation: Smooth, ergonomic lever handle for quick 90-degree ON/OFF fluid regulation.
- True Union Design Available: Allows easy in-line maintenance without disconnecting pipeline flanges.
Technical Specifications
| Specification | Details |
|---|---|
| Body Material | Virgin Polypropylene (PP) |
| Size Range | 15 mm (1/2″) to 150 mm (6″) |
| Pressure Rating | PN10 (10 Bar) / PN16 (16 Bar) |
| Seals & Seats | 100% Virgin PTFE (Teflon) with Viton / EPDM O-rings |
| End Connections | Flanged (ANSI 150# / DIN), Screwed (BSP/NPT), Socket Weld |
| Temperature Rating | Up to 90°C (194°F) |
Industrial Applications
Chemical Process Pipelines, Acid Distribution Headers, Water & Wastewater Treatment Plants, Fertilizer Plants, Electroplating Lines, and Industrial Scrubbers.
