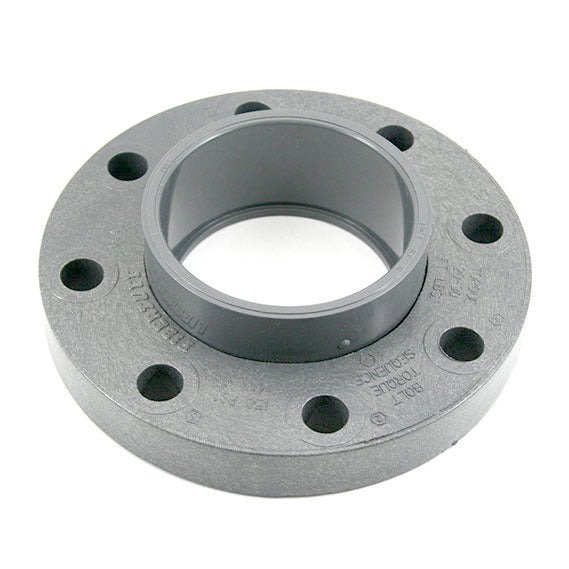

Industrial CPVC Flanges (Slip-on, Blind, Threaded, Van Stone)
Nikunj Fibre Glass manufactures and stocks an extensive lineup of CPVC Industrial Flanges in Vapi, Gujarat. Designed in compliance with ANSI B16.5 Class 150 and DIN standards, our CPVC flanges provide robust, leak-proof mechanical jointing between CPVC pipelines and process equipment such as pumps, tanks, heat exchangers, and industrial valves.
Flange Configurations Available
- CPVC Van Stone Flanges (Two-Piece): Consists of a CPVC stub end with a rotating outer backing ring. The rotating ring enables easy bolt hole alignment without turning the welded pipe, greatly reducing installation labor.
- CPVC Slip-On Socket Flanges (One-Piece): Solid one-piece construction for direct solvent welding to pipe ends. Provides maximum joint rigidity in high-pressure headers.
- CPVC Blind Flanges: Solid unbored flanges used for terminating pipe branches or closing inspection manholes on chemical vessels.
- CPVC Threaded Flanges: Female NPT or BSPT threaded hubs for mating with metal threads or plastic instrument connections.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Manufacturing Standards | ANSI B16.5 Class 150, DIN PN10 / PN16, BS10 Table D / E |
| Size Range | 15 mm (1/2″) to 300 mm (12″) NB |
| Backing Ring Material | Solid CPVC, PP Glass-Filled, or Epoxy-Coated Ductile Iron |
| Pressure Rating | 10 bar to 16 bar (150 PSI) at ambient temperature |
| Operating Temperature | Up to 93°C (200°F) continuous |
Fast Delivery Across Industrial Gujarat
Ready stocks maintained at our Vapi facility with instant delivery to Ankleshwar, Dahej, Surat, Ahmedabad, Vadodara, and Mumbai.
Vipul R. Joshi (verified owner) –
ANSI 150 bolt circle drilling is precise. Van Stone loose ring design allowed our pipefitters to align bolt holes with steel pump nozzles without twisting the pipeline. Solid quality.
