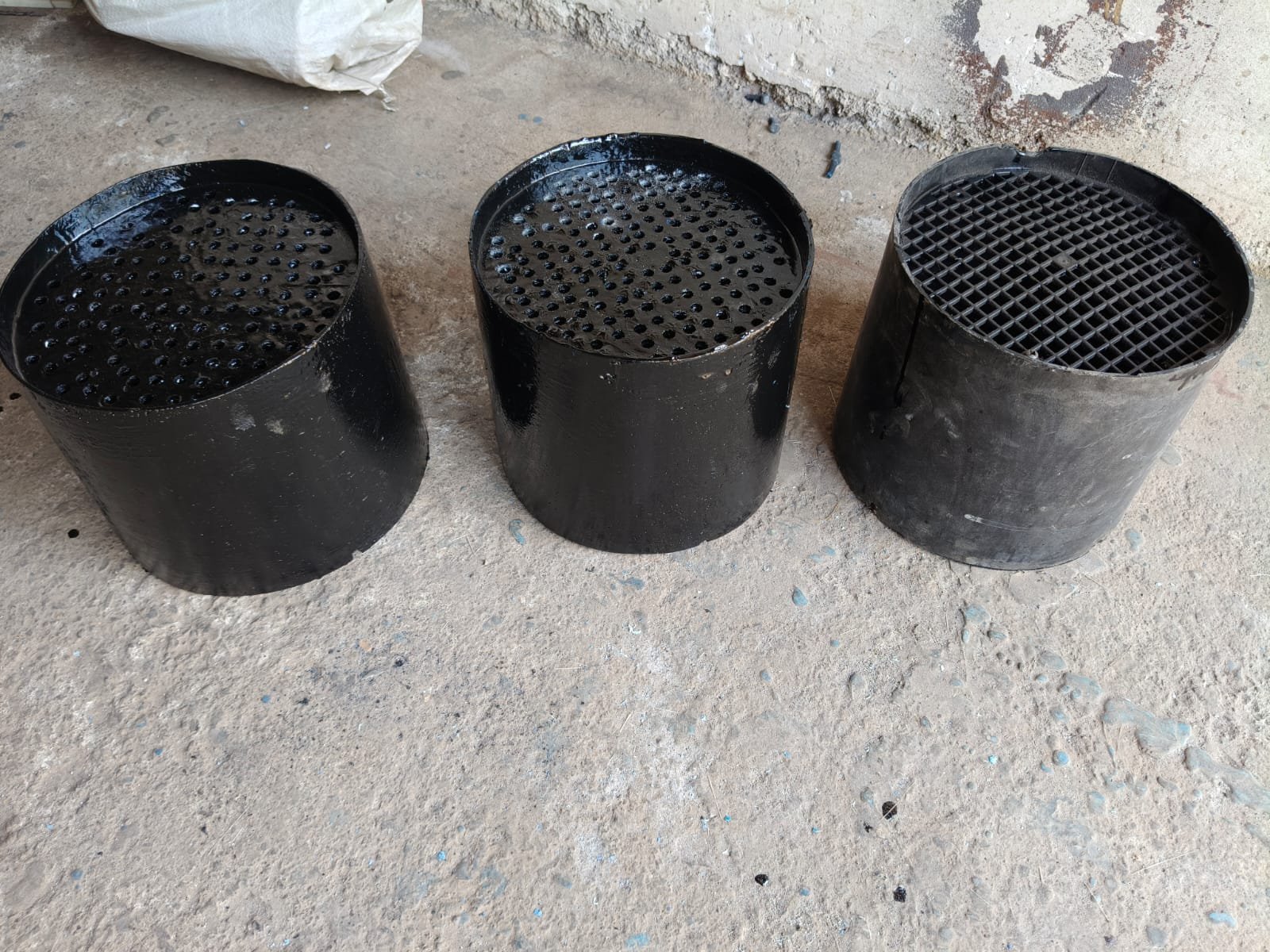

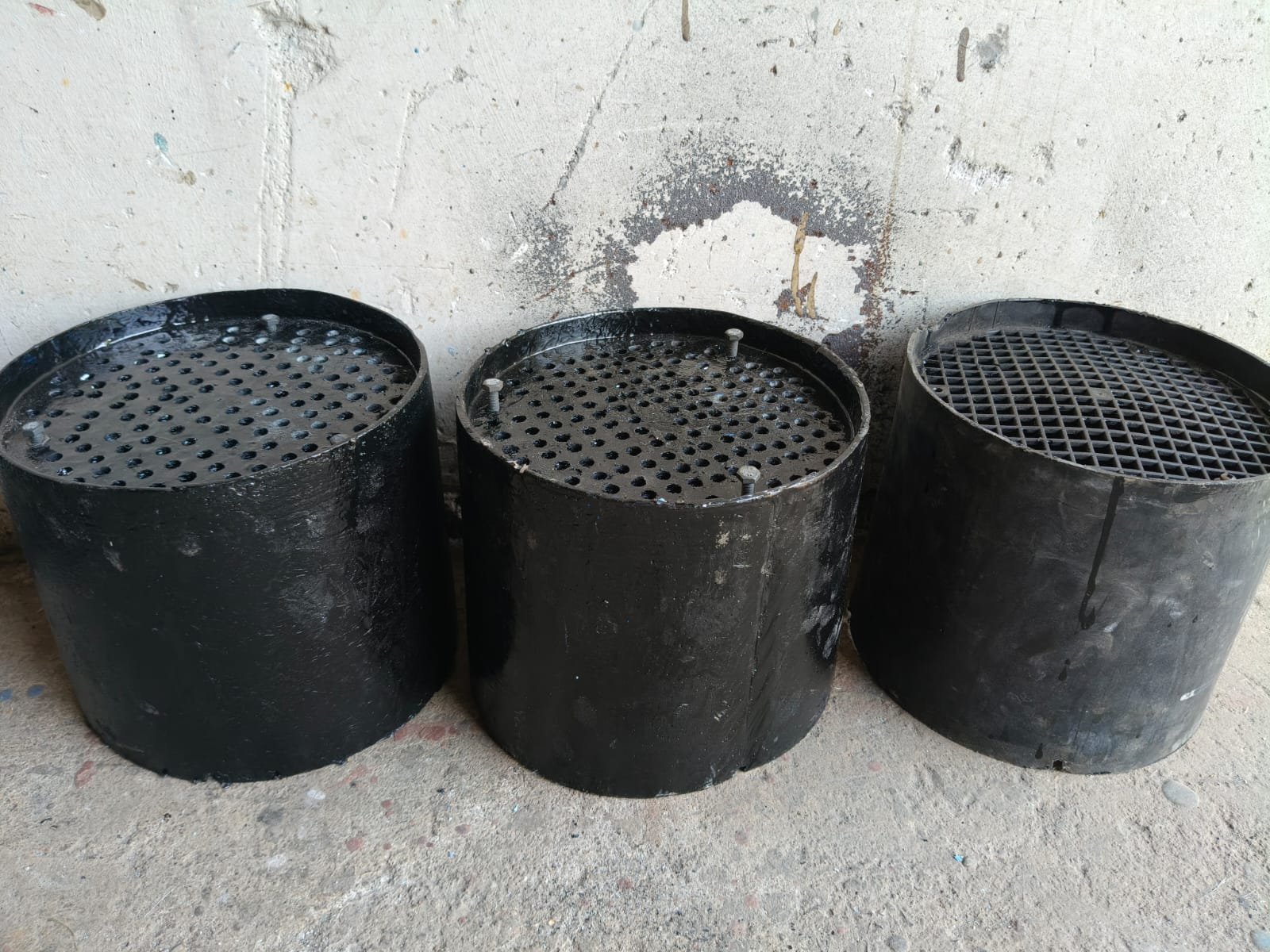

Industrial FRP Motor Fan Cover & Cowl Manufacturer in Gujarat
Nikunj Fibre Glass is a premier manufacturer and supplier of heavy-duty FRP Motor Fan Covers (Fiberglass Electric Motor Fan Guards & Cowls) based in Vapi, Gujarat. Standard metallic or pressed-steel motor fan covers quickly succumb to corrosion, acidic rust, and chemical degradation in aggressive industrial atmospheres. When steel cowls corrode, they vibrate loose, collapse into rotating cooling fans, and cause catastrophic motor burnouts. Our precision-engineered FRP motor fan covers eliminate corrosion permanently, ensuring reliable continuous cooling and mechanical protection for industrial electric motors.
Molded with aerodynamic contours and high-strength composite matrices, our FRP fan cowls streamline intake airflow through integrated ventilation grilles and circular perforations directly across motor stator cooling fins, preventing overheating in severe outdoor and corrosive chemical plant environments.
Key Features & Advantages
- 100% Rust & Corrosion Proof: Built with premium grade Isophthalic or Vinyl Ester resins to resist concentrated acid fumes (HCl, H2SO4), caustic washdowns, wet chlorine, and coastal salt-spray.
- Superior Aerodynamic Cooling: Smooth bell-mouth profile and engineered ventilation grilles ensure laminar airflow intake with zero restriction to motor fan efficiency.
- High Impact & Mechanical Strength: High glass-to-resin ratio ensures exceptional impact resistance against accidental tool drops, flying gravel, and physical vibrations without denting.
- Electrically Non-Conductive & Non-Sparking: Provides superior dielectric safety and non-sparking performance, essential for hazardous and explosive zone operations.
- UV & Weather Resistant: Impregnated with advanced UV stabilizers and high-grade isophthalic gel coat for 15+ years of outdoor exposure without chalking or cracking.
- Direct Drop-in Replacement: Available with pre-formed bolt mounting slots perfectly aligned with OEM IEC and NEMA motor frame bolt patterns.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Name | FRP Motor Fan Cover (Fiberglass Electric Motor Cowl) |
| Applicable Motor Frames | Frame 71, 80, 90, 100, 112, 132, 160, 180, 200, 225, 250, 280, 315, 355 (IEC / NEMA) |
| Wall Thickness | 3.0 mm to 6.0 mm heavy-duty molded composite wall |
| Resin Matrix | Isophthalic Polyester / Vinyl Ester (Derakane / Swancor equivalent) |
| Reinforcement | E-Glass Chopped Strand Mat (CSM) & Woven Roving |
| Ventilation Configuration | Precision perforated circular holes, molded square grid mesh, or SS304/PP protective screen |
| Operating Temperature | -40°C to +120°C continuous service |
| Standard Colors & Finish | Industrial Black, Safety Yellow, Light Grey (RAL 7035), or custom client colors with UV gel coat |
| Mounting Arrangement | Stator frame bolt circle slots / pre-drilled OEM mounting holes |
| Fire Retardancy | Self-extinguishing Class 1 fire-retardant resins available upon request |
Industrial Applications
- ✅ Chemical & Petrochemical Plants: Acid pump motors, blower drives, and transfer agitators exposed to caustic vapors.
- ✅ Cooling Towers & Heat Exchangers: Axial fan drive motors and exhaust blower motors operating in high-humidity mist.
- ✅ Marine & Coastal Installations: Port cranes, deck machinery, and saline washdown seawater pump motors.
- ✅ Water & Wastewater Treatment (ETP/STP): Submersible and surface aerator pump motors, clarifier drives, and sludge handling motors.
- ✅ Pharmaceutical & Agro-chemical Units: Sterile washdown zones and solvent processing areas requiring easy-to-clean composite covers.
Frequently Asked Questions (FAQ)
Q1: Why should I switch from metal fan cowls to FRP motor fan covers?
Metal cowls rapidly corrode in chemical plants and coastal air, leading to rust flaking, structural thinning, and eventual collapse into the motor fan blades. FRP motor fan covers are permanently corrosion-free, lightweight, vibration-absorbent, and provide decades of maintenance-free service.
Q2: Does an FRP motor fan cover restrict airflow or increase motor temperature?
No. Our covers are engineered with aerodynamic bell-mouth air intakes and generous ventilation aperture ratios that maintain or even improve CFM airflow efficiency across the motor fins, keeping operating temperatures within OEM limits.
Q3: Can Nikunj Fibre Glass manufacture custom sizes for special or older motors?
Yes. While we stock standard IEC frame sizes (Frame 71 through 355), we fabricate custom-dimensioned FRP fan covers with custom bolt circles, shaft clearance depths, and specialized ventilation patterns to fit any motor specification.
