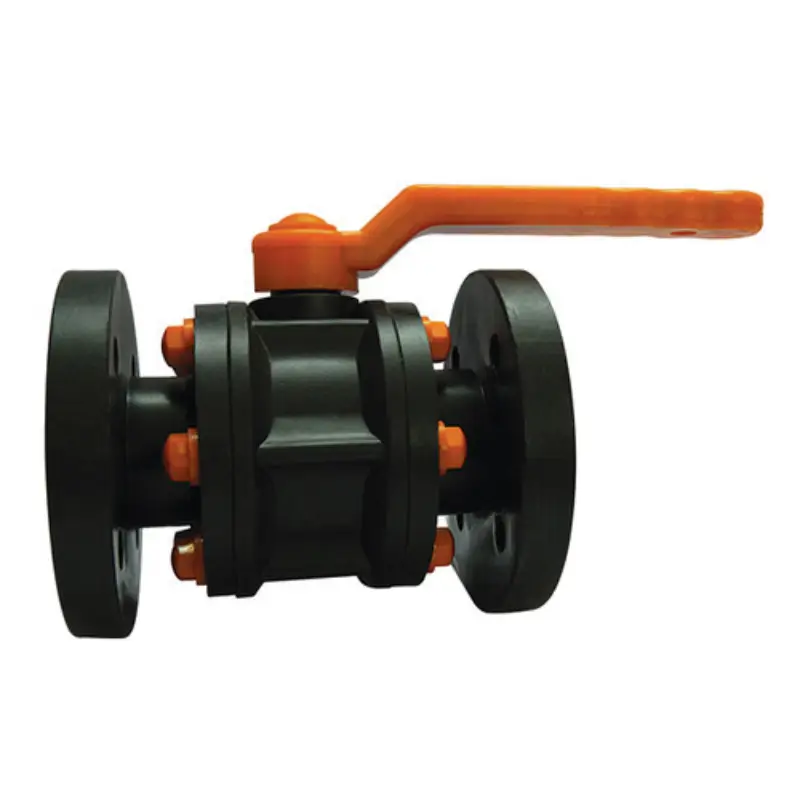

Industrial HDPE Ball Valve Manufacturer in Gujarat
Nikunj Fibre Glass is a leading manufacturer and supplier of HDPE Ball Valves (High-Density Polyethylene Industrial Quarter-Turn Valves) based in Vapi, Gujarat. Specifically engineered for aggressive chemical pipelines, acid conveyance, slurry handling, and industrial effluent lines, our HDPE ball valves provide zero-leakage shutoff, low operating torque, and total resistance to chemical corrosion.
Manufactured with solid molded virgin PE-100 bodies, precision-machined thermoplastic balls, and virgin PTFE seats, our ball valves deliver dependable performance without valve seizing, pin corrosion, or seat leakage.
Key Features & Advantages
- Bubble-Tight Shutoff: High-precision CNC-machined ball seated in resilient virgin PTFE (Teflon) rings ensures Class VI zero-leakage isolation.
- Chemical & Slurry Resistant: Unaffected by hydrochloric acid, dilute sulfuric acid, abrasive chemical slurries, and caustic washes.
- Low Operating Torque: Smooth low-friction PTFE seating enables effortless manual quarter-turn opening and closing.
- Integral Flanged Ends: Heavy ANSI Class 150 / DIN PN10 flanged ends molded directly to the valve body eliminate leak paths.
- Blowout-Proof Stem: Internally assembled stem with dual EPDM/Viton O-rings ensures complete operator safety under pressure.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Size Range | 25 mm (1″) to 200 mm (8″) Nominal Bore |
| Pressure Rating | PN6 / PN10 (Up to 10 Bar / 150 psi at ambient temperature) |
| Body & Ball Material | 100% Virgin High Density Polyethylene (PE-100) |
| Seat Rings | Virgin PTFE (Teflon) |
| Stem Seals | Dual Viton (FKM) / EPDM O-rings |
| End Connections | ANSI Class 150 / DIN PN10 Flanged End |
| Operating Temperature | -20°C to +75°C |
Industrial Applications
- ✅ Chemical Process Piping: Isolation valves for acid and alkali distribution loops.
- ✅ Pickling & Galvanizing: Acid pump discharge and bath circulation lines.
- ✅ Water Treatment & Desalination: Brine pipelines, hypochlorite dosing, and pure water lines.
- ✅ Mining & Fertilizer Slurry: Abrasive chemical slurry and tailings conveyance.
Frequently Asked Questions (FAQ)
Q1: Can these HDPE valves be actuated with pneumatic or electric actuators?
Yes, we supply HDPE ball valves equipped with ISO 5211 direct-mount actuator brackets for pneumatic and motorized electric actuation.
Q2: How does an HDPE ball valve compare to a PP ball valve?
HDPE ball valves offer superior low-temperature impact toughness down to -20°C and excellent resistance to abrasive slurries, while PP valves offer slightly higher temperature ratings up to 95°C.
