Description

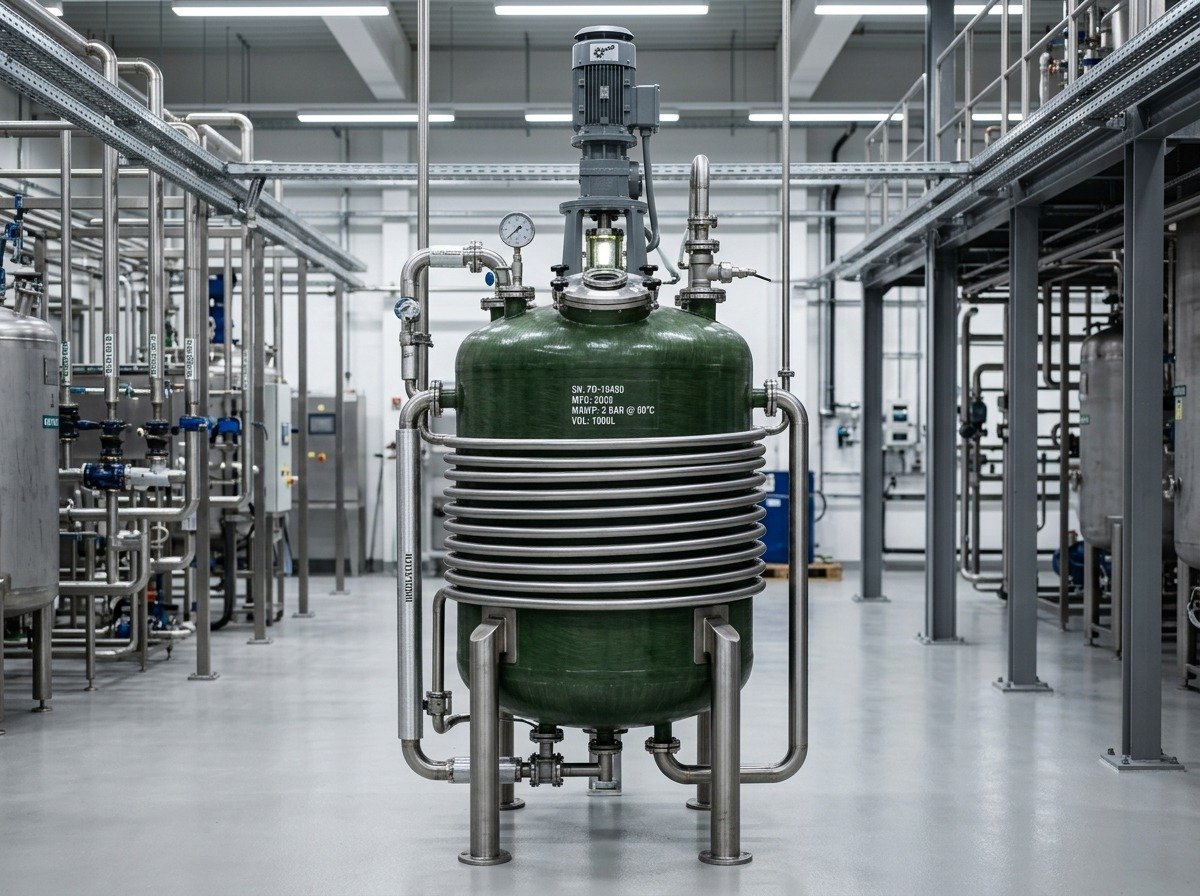

Custom PP Chemical Reaction Vessels & Agitated Tanks
Nikunj Fibre Glass is a trusted manufacturer and exporter of PP Reactors (Polypropylene Reaction Vessels) in Vapi, Gujarat. Engineered specifically for corrosive chemical syntheses where metallic or glass-lined reactors are cost-prohibitive or prone to chipping, our PP reactors offer extraordinary reliability and chemical resistance.
Key Features & Engineering Highlights
- 100% Chemical Passivity: Does not react with strong acids, alkalis, brominated compounds, or harsh chlorides.
- Precision Agitation Assembly: Equipped with PP-jacketed or solid PP agitators (anchor, turbine, propeller, or pitch blade) matched with heavy-duty reduction gearboxes.
- Thermal Jacketing Options: Available with dimpled or spiral external PP/FRP heating and cooling jackets for regulated temperature cycles up to 90°C.
- Leak-Proof Mechanical Seals: Gland packing, vapor seals, or single/double mechanical seals with PTFE contact faces for zero fugitive emissions.
- Full Range of Nozzles: Customized sight glasses, light ports, pH sensor ports, dip pipes, and charging manholes.
Technical Specifications
| Parameter | Value |
|---|---|
| Vessel Material | High Grade Polypropylene (PP / PP-H) |
| Reactor Capacity | 200 Litres to 15,000 Litres |
| Agitator Type | Anchor, Pitch Blade Turbine, Propeller (PP Clad) |
| Speed Range | 30 RPM to 350 RPM (VFD compatible) |
| Operating Pressure | Atmospheric to Mild Pressure / Mild Vacuum |
| Temperature Range | -10°C to +90°C |
Applications
Organic Chemical Synthesis, Pharmaceutical Formulations, Pigment Dispersion, Acid Neutralization, Effluent Coagulation, and Specialty Chemical Blending across Gujarat and pan-India.
