Description

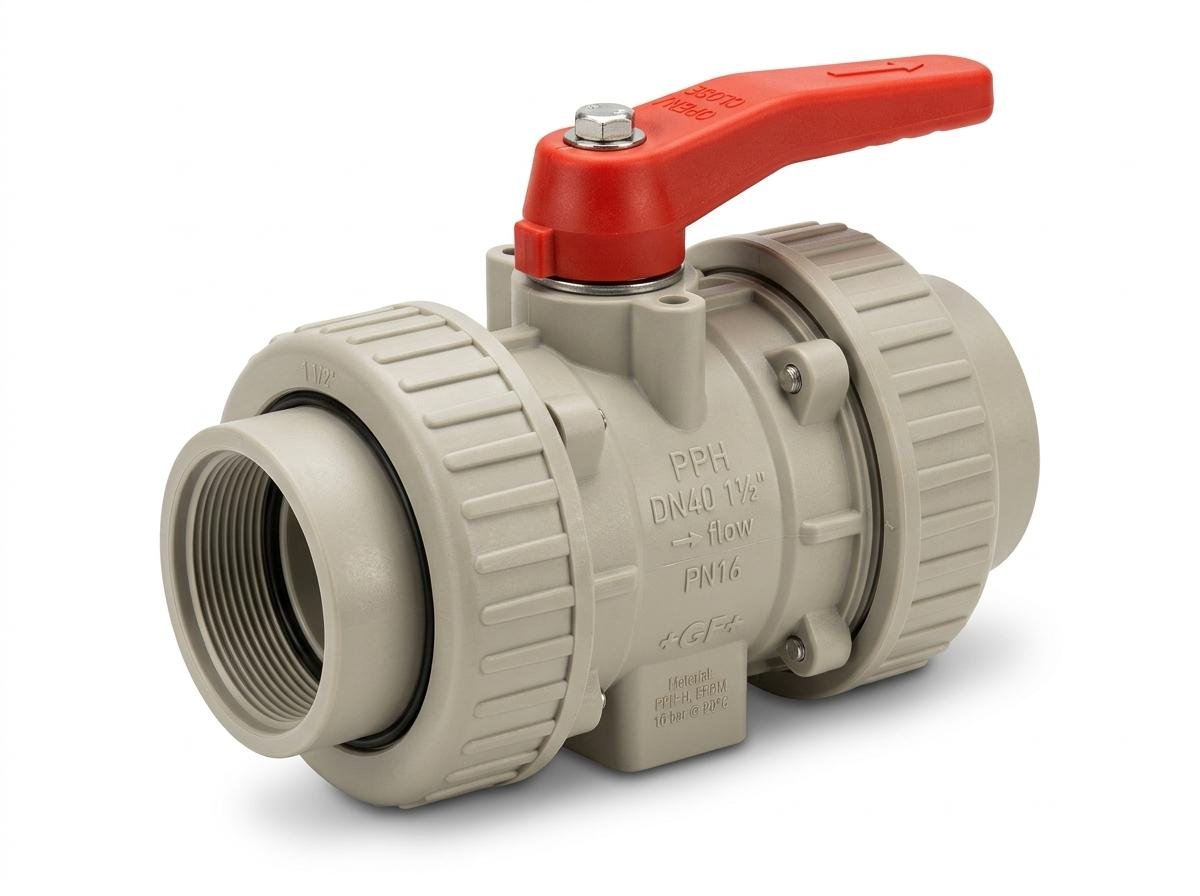

Industrial PPH Ball Valves for Severe Chemical Service

Nikunj Fibre Glass manufactures premium PPH Ball Valves in Vapi, Gujarat. Since 1992, our facility has delivered precision industrial plastic valves and flow control equipment across India. Therefore, chemical processing, chlor-alkali, and metal finishing plants depend on our leak-free valves.

Polypropylene Homopolymer (PPH) provides outstanding chemical inertia and thermal resistance. In addition, its high mechanical rigidity prevents body deformation under line pressure surges. Specifically, our PPH ball valves deliver bubble-tight isolation and smooth quarter-turn throttling across aggressive chemical pipelines up to 100°C.

Precision Molded Flow Control Equipment

We engineer true union ball valves, flanged ball valves, and three-way PPH valves from 1/2″ to 6″ nominal bore. For example, our true union design allows quick in-line maintenance without dismantling adjacent pipe spools. Consequently, maintenance teams achieve rapid valve servicing with minimum plant downtime.

Key Advantages of PPH Ball Valves

Bubble-Tight Shutoff & Chemical Durability

• Corrosion-Proof Fluid Path: The PPH body and mirror-finished ball resist concentrated acids, alkalis, brine, and solvents. Therefore, the valve will never rust, seize, or scale.
• Virgin PTFE Seats & Dual O-Rings: Precision machined PTFE ball seats provide low operating torque and zero-leakage sealing across full vacuum to 16 bar pressure.
• True Union Design with Buttress Threads: Both end connectors feature heavy-duty buttress threads. Thus, technicians can service the valve body easily without disturbing the pipeline.
• High Operating Temperature Range: Operates continuously up to 100°C (212°F), far exceeding standard PVC and standard polypropylene ball valves.
• Manual & Actuator Ready Mounting: We supply ergonomic manual lever handles as well as ISO 5211 direct-mount pads for pneumatic and electric rotary actuators.

Technical Specifications: PPH Ball Valves

Standard Dimensions & Pressure Classes

Technical Parameter	Design Standard & Engineering Specification
Design Standards	ISO 16135, DIN 8077/8078, and ASME B16.5 / DIN PN10 flange drillings
Body & Ball Material	100% Virgin Polypropylene Homopolymer (PPH Type 1)
Seat & Seal Material	Virgin PTFE (Teflon) ball seats; FKM (Viton) or EPDM O-ring elastomer seals
Size Range	15 mm (1/2″) to 150 mm (6″) nominal bore
Pressure Rating	PN10 / PN16 (150 PSI working pressure at 20°C)
End Connections	Socket Fusion, Butt Welding Ends, Screwed BSP/NPT, and Flanged Ends
Operation Modes	Manual Hand Lever, Gearbox, Pneumatic Actuator, Electric Actuator

Industrial Applications of PPH Ball Valves

Reliable Isolation in Corrosive Processes

• ✅ Acid & Alkali Transfer Lines: Safe isolation of hydrochloric acid, sulfuric acid, and caustic soda dosing lines.
• ✅ Electroplating & Metal Finishing: Continuous handling of hot surface treatment and pickling baths.
• ✅ Chlor-Alkali & Chemical Processing: Transfer of brine, bleach, and chemical intermediates without corrosion.
• ✅ Industrial Water & Wastewater: Flow regulation in reverse osmosis (RO), demineralization (DM), and ETP neutralization plants.

Leading PPH Ball Valve Manufacturer in Gujarat

Ready Stock & Rapid Dispatch

Nikunj Fibre Glass manufactures and stocks heavy-duty PPH ball valves in Vapi GIDC, Gujarat. In addition, our warehouse maintains ready stock across standard sizes to ensure next-day delivery:

• Ahmedabad & Sanand: Vatva GIDC, Naroda, Odhav, Kathwada, Changodar, and Sanand
• Vapi & South Gujarat: Vapi GIDC, Sarigam, Umbergaon, Valsad, and Gundlav
• Surat, Ankleshwar & Dahej: Sachin GIDC, Pandesara, Ankleshwar GIDC, and Dahej PCPIR
• Vadodara & Central Gujarat: Makarpura GIDC, Nandesari, Halol, Savli, and Karjan
• Saurashtra Hubs: Rajkot, Jamnagar, Bhavnagar, and Morbi

Additionally, we manufacture matching PVDF Ball Valves, PVC Ball Valves, and uPVC Butterfly Valves. Therefore, contact Nikunj Fibre Glass today for immediate stock availability and factory prices.

Frequently Asked Questions (FAQ)

Common Technical Inquiries

Q1: What is the difference between a True Union PPH Ball Valve and a Flanged PPH Ball Valve?
A True Union PPH Ball Valve incorporates union nuts on both ends, allowing the central valve body to be slipped out for maintenance while the piping remains locked in place. A Flanged PPH Ball Valve bolts directly between companion pipe flanges, making it ideal for high-vibration or heavy-duty chemical process loops.

Q2: Can PPH ball valves handle high temperatures?
Yes, PPH ball valves operate reliably up to 100°C (212°F). Unlike PVC and UPVC valves that deform above 60°C, PPH retains mechanical strength and pressure containment in hot chemical services.

Q3: Can Nikunj Fibre Glass supply actuated PPH ball valves?
Yes, Nikunj Fibre Glass provides automated PPH ball valves fitted with pneumatic double-acting/spring-return actuators or motorized electric quarter-turn actuators with position indicators and manual overrides.
