Description

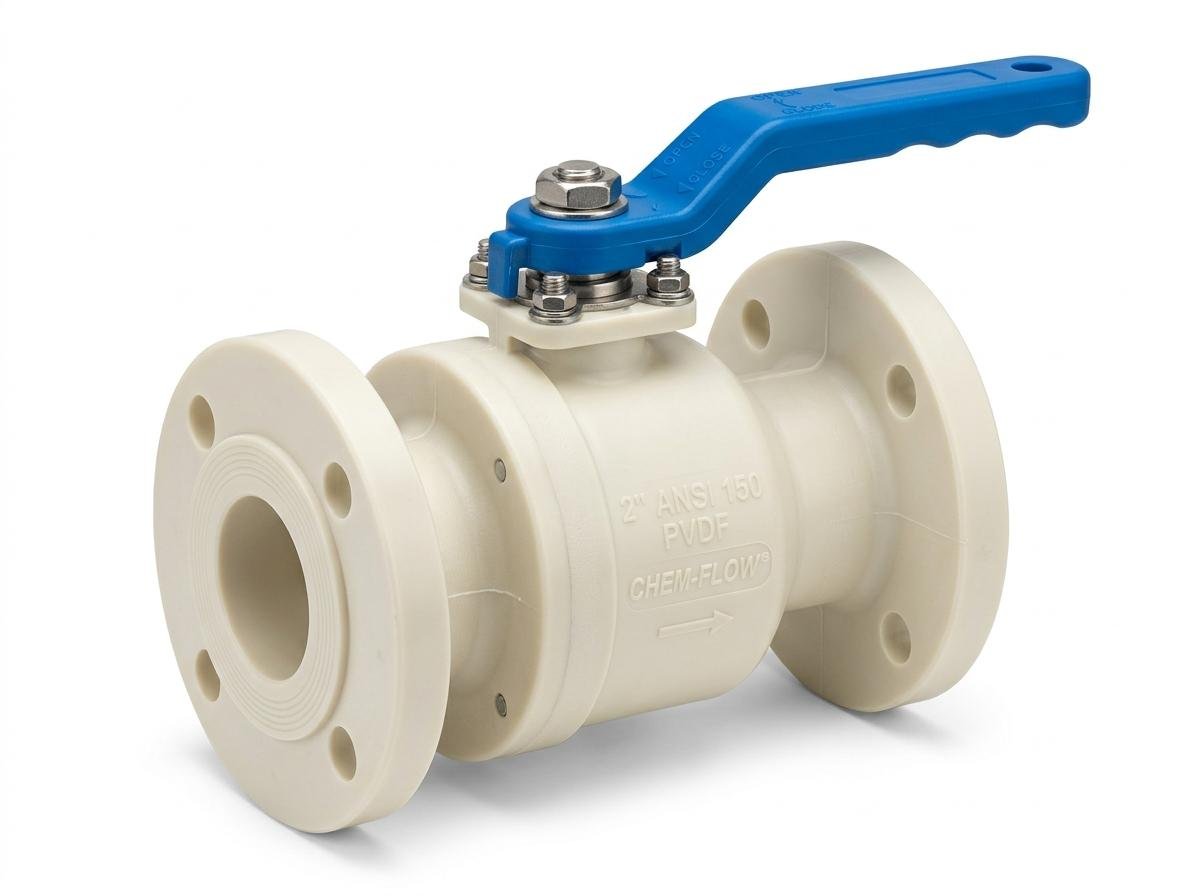

High-Performance Industrial PVDF Ball Valves
Nikunj Fibre Glass manufactures heavy-duty PVDF Ball Valves in Vapi, Gujarat. Since 1992, our team has produced industrial corrosion-resistant flow control equipment across India. Therefore, chemical manufacturing and pharmaceutical plants depend on our dependable shut-off valves.
Polyvinylidene Fluoride delivers outstanding mechanical strength and chemical stability. In addition, it easily withstands concentrated mineral acids, oxidizing agents, and severe halogens. Specifically, our valves ensure bi-directional, bubble-tight shut-off under continuous temperatures up to 140°C (300°F).
Precision Fluoropolymer Flow Control
We supply flanged ball valves, true-union ball valves, and three-way manifold valves. For example, each valve incorporates pure virgin PTFE seats and high-grade FKM elastomeric seals. Consequently, operating plants achieve total containment security without recurring gland packing maintenance.
Key Advantages of PVDF Ball Valves
Zero-Leakage & High-Temperature Performance
- Full-Port Flow Geometry: The precision-machined PVDF ball provides an unobstructed full bore. Therefore, our valves minimize pressure drop and prevent turbulence in slurry lines.
- High Thermal Stability (Up to 140°C): The fluoropolymer body handles continuous working temperatures up to 140°C. In contrast, standard PP and PVC ball valves deform above 60°C.
- Superior Acid & Chemical Resistance: Our valves resist hot chromic acid, concentrated sulfuric acid, and bromine. Consequently, they outlast metallic alloy valves in corrosive chemical environments.
- Pure Virgin PTFE Seats: We equip every ball valve with self-adjusting PTFE seats. Thus, they deliver frictionless quarter-turn operation and bubble-tight sealing.
- Hydrostatically Tested Quality: Our technicians pressure-test every valve body and seat before dispatch. Because of our rigorous testing, we guarantee 100% leak-proof reliability.
Technical Specifications: PVDF Ball Valves
Standard Valve Engineering Parameters
| Technical Parameter | Specification & Engineering Standard |
|---|---|
| Design Standards | BS 5351, ISO 16135, and ASME B16.34 standards |
| Body & Ball Material | 100% Virgin PVDF resin (Solef® / Kynar® fluoropolymer) |
| Seat & Seal Materials | Virgin PTFE ball seats with FKM (Viton®) or EPDM O-rings |
| Size Spectrum | 1/2″ (15 mm) to 6″ (150 mm) nominal pipe diameter |
| Pressure Ratings | PN10 and PN16 pressure ratings (Class 150# compatible) |
| End Connections | ANSI Class 150# flanged, DIN PN10/16, and true-union socket ends |
| Operating Temperature | -30°C to +140°C continuous working fluid temperature |
| Operation Modes | Manual lever handle, gear operator, and pneumatic actuation |
| Manufacturing Location | Vapi GIDC, Gujarat, India |
Industrial Applications & Valve Compatibility
Critical Fluid Isolation Tasks
Plant managers deploy our PVDF Ball Valves for severe-duty flow regulation. Because PVDF resists harsh chemical attack, it prevents unscheduled plant shutdowns:
- ✅ Chemical Synthesis & Dosing: Plants utilize these valves for concentrated nitric acid, sulfuric acid, and bromine lines. In particular, they ensure precise isolation.
- ✅ Electroplating & Surface Finishing: They control hot chromic acid feeds on automated chrome plating lines. Meanwhile, the non-stick ball resists chemical scaling.
- ✅ Steel Pickling Acid Isolation: Facilities install them on mixed hydrofluoric (HF) and hydrochloric acid header lines.
- ✅ Semiconductor Cleanroom Piping: High-purity PVDF bodies safeguard ultra-pure chemicals from ionic contamination.
- ✅ Effluent Treatment Plants (ETP): Furthermore, waste treatment operators select these valves for aggressive acid neutralization lines.
Leading PVDF Ball Valve Manufacturer in Gujarat
Fast Delivery Across Industrial Belts
Nikunj Fibre Glass manufactures certified PVDF ball valves in Vapi GIDC, Gujarat. In addition, we coordinate fast dispatch and technical sizing support across all primary industrial hubs:
- Ahmedabad & Sanand: Vatva GIDC, Naroda, Odhav, Kathwada, Changodar, and Sanand
- Vapi & South Gujarat: Vapi GIDC, Sarigam, Umbergaon, Valsad, and Gundlav
- Surat, Ankleshwar & Dahej: Sachin GIDC, Pandesara, Ankleshwar GIDC, and Dahej PCPIR
- Vadodara & Central Gujarat: Makarpura GIDC, Nandesari, Halol, Savli, and Karjan
- Saurashtra Hubs: Rajkot, Jamnagar, Bhavnagar, and Morbi
Additionally, we supply matching PVDF Tanks, PP Ball Valves, and HDPE Ball Valves. Therefore, contact Nikunj Fibre Glass today for competitive pricing and prompt shipment.
Frequently Asked Questions (FAQ)
Common Technical Inquiries
Q1: What are the primary advantages of PVDF Ball Valves over PP or metallic valves?
PVDF ball valves withstand continuous temperatures up to 140°C (300°F) and resist aggressive oxidizing acids. In contrast, PP valves soften above 70°C. Meanwhile, metallic valves suffer from rapid chemical pitting. Therefore, PVDF delivers exceptional service life in harsh chemical applications.
Q2: What sealing materials do Nikunj Fibre Glass PVDF Ball Valves use?
Our valves feature 100% pure virgin PTFE ball seats for low friction and tight sealing. In addition, we utilize chemical-grade FKM (Viton®) or EPDM O-ring stem seals. Consequently, the valve provides bubble-tight shut-off and prevents hazardous stem leaks.
Q3: Does Nikunj Fibre Glass supply flanged PVDF ball valves in Ahmedabad and Gujarat?
Yes, Nikunj Fibre Glass supplies ANSI Class 150# flanged and socket PVDF ball valves from 1/2″ to 6″. Moreover, our Vapi GIDC manufacturing unit keeps ready inventory across popular sizes. Furthermore, we deliver expedited shipments to Ahmedabad, Surat, Vadodara, Ankleshwar, and nationwide across India.
