PVDF Tank

Description

High-Performance PVDF & PVDF/FRP Chemical Storage Tanks

Nikunj Fibre Glass manufactures heavy-duty PVDF Tanks and dual laminate chemical storage vessels in Vapi, Gujarat. Since 1992, our team has delivered custom corrosion-resistant process equipment across India. Therefore, industrial plants rely on our high-quality fluid containment systems.

Polyvinylidene Fluoride (PVDF) provides outstanding mechanical strength and chemical stability. In addition, it easily withstands severe oxidizing acids where traditional plastics fail. Specifically, our vessels deliver superior performance against hot chromic acid, concentrated nitric acid, and wet chlorine.

Advanced Dual Laminate Engineering

We build both solid PVDF tanks and composite PVDF/FRP dual laminate tanks. For dual laminate vessels, we bond an inner virgin PVDF liner to an exterior structural FRP shell. As a result, the vessel combines total chemical inertness inside with high hydrostatic strength outside. Furthermore, this composite structure prevents external corrosion.

Key Industrial Advantages of PVDF Tanks

Superior Thermal & Chemical Endurance

• Computerized German Butt-Fusion Welding: Our technicians weld liner sheets using modern German butt-fusion machines. Therefore, every seam achieves 100% homogenous bond strength without weak points.
• High Continuous Working Temperature: PVDF safely withstands continuous temperatures up to 140°C (300°F). In contrast, standard PVC and PP tanks begin to soften above 60°C.
• Unrivaled Chemical Inertness: The material resists aggressive chromic acid, hydrofluoric acid (HF), and halogens. Consequently, it prevents premature wall cracking or chemical permeation.
• 100% Spark-Tested Welds: We test all liner welds using high-frequency 15 kV–20 kV spark testers before dispatch. Thus, we guarantee zero porosity and leak-proof containment.
• Robust Exterior Reinforcement: We apply high-tensile fiberglass or heavy mild steel cages outside the liner. Because of this composite structure, the tank withstands heavy wind and seismic loads.
• Ultra-Smooth Non-Stick Interior: The non-porous fluoropolymer surface resists abrasion and scaling. Furthermore, it ensures effortless cleaning and requires zero ongoing maintenance.

Technical Specifications: PVDF Storage & Processing Tanks

Standard Engineering Parameters

Chemical Compatibility & Industrial Applications

Demanding Chemical Processing Environments

Industries select our PVDF Tanks for severe-duty fluid processing. Because fluoropolymers resist oxidation, they safeguard personnel and critical factory assets. For example, they prevent dangerous acid leaks in chemical processing plants:

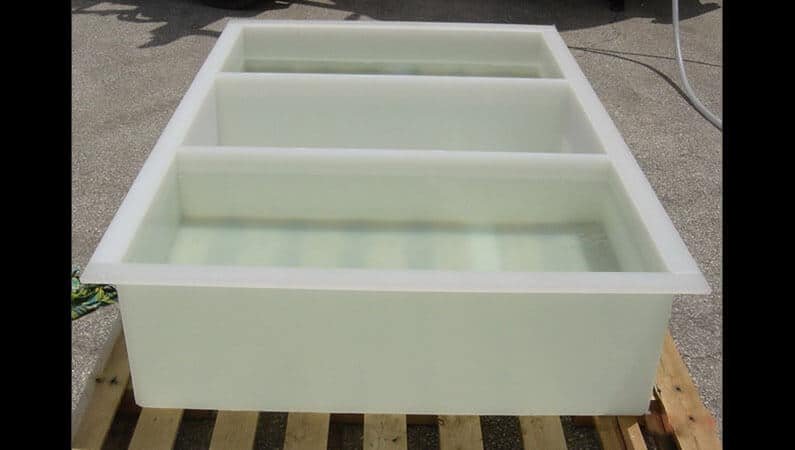

• ✅ Electroplating & Hard Chrome Plating: Plants use these tanks for hot chromic acid (CrO3) baths and nickel plating lines. In particular, they withstand continuous electrical agitation.
• ✅ Steel Pickling & Acid Recovery: They reliably store mixed hydrofluoric (HF) and nitric acid (HNO3) pickling solutions. Meanwhile, the robust walls resist aggressive acid fumes.
• ✅ Chemical Synthesis & Halogens: In addition, the material safely stores elemental bromine, wet chlorine, and sodium hypochlorite.
• ✅ Semiconductor Manufacturing: Ultra-smooth PVDF surfaces maintain high chemical purity with minimal ionic extraction. Similarly, they prevent particle shedding in cleanrooms.
• ✅ Pharmaceutical Processing: Furthermore, facilities rely on our vessels for aggressive acid dosing and solvent recovery.
• ✅ Industrial Wastewater & ETP: Plants deploy these tanks for hot acid neutralization and corrosive effluent treatment. Therefore, they deliver reliable long-term service.

Leading PVDF Tank Manufacturer in Gujarat & India

Fast Dispatch Across Industrial Hubs

Nikunj Fibre Glass supplies certified PVDF storage tanks from Vapi GIDC, Gujarat. In addition, we coordinate fast dispatch and on-site guidance across all primary industrial hubs:

• Ahmedabad & Sanand: Vatva GIDC, Naroda, Odhav, Kathwada, Changodar, and Sanand
• Vapi & South Gujarat: Vapi GIDC, Sarigam, Umbergaon, Valsad, and Gundlav
• Surat, Ankleshwar & Dahej: Sachin GIDC, Pandesara, Ankleshwar GIDC, and Dahej PCPIR
• Vadodara & Central Gujarat: Makarpura GIDC, Nandesari, Halol, Savli, and Karjan
• Saurashtra Hubs: Rajkot, Jamnagar, Bhavnagar, and Morbi

Additionally, we manufacture PVC FRP Tanks, FRP Storage Tanks, HDPE Storage Tanks, and PP Tanks. Therefore, contact Nikunj Fibre Glass today to request engineering drawings and direct factory pricing.

Frequently Asked Questions (FAQ)

Common Technical Inquiries

Q1: What makes PVDF Tanks superior for aggressive chemical handling and chrome plating?
PVDF is a high-performance fluoropolymer plastic engineered for severe chemical containment. Specifically, tanks constructed from PVDF withstand continuous working temperatures up to 140°C (300°F). In addition, they offer complete resistance against hot chromic acid, concentrated nitric acid, and halogens. Consequently, they outlast standard PP and HDPE tanks.

Q2: What are the advantages of PVDF / FRP Dual Laminate Tanks versus solid PVDF or rubber-lined tanks?
PVDF/FRP dual laminate tanks combine a virgin PVDF chemical liner with a rigid FRP structural shell. Therefore, the inner liner provides total corrosion resistance. Meanwhile, the outer fiberglass shell bears all mechanical pressure. Additionally, this composite construction weighs much less than rubber-lined steel and avoids external atmospheric rust.

Q3: Does Nikunj Fibre Glass manufacture custom PVDF tanks and provide delivery across Gujarat and India?
Yes, Nikunj Fibre Glass fabricates custom PVDF tanks from 200 Litres to 50,000 Litres in Vapi GIDC, Gujarat. Moreover, we supply vertical, horizontal, and rectangular tanks across Ahmedabad, Surat, Vadodara, Ankleshwar, and nationwide across India. Furthermore, we provide complete cascade overflow weirs, immersion heater ports, and structural frames.
