High-Efficiency PVC Drift Eliminators for Industrial Cooling Towers
Nikunj Fibre Glass manufactures high-efficiency PVC Drift Eliminators in Vapi, Gujarat. Since 1992, our facility has delivered premium cooling tower internal components across India. Therefore, chemical plants, thermal power stations, and HVAC systems rely on our high-performance moisture separation modules.
Drift eliminators strip entrained water droplets from ascending cooling tower airflow. In addition, our thermoformed cellular modules force moisture to change direction multiple times. Specifically, centrifugal forces capture water droplets and return them directly to the cold water basin. As a result, our eliminators suppress water drift loss below 0.005%.

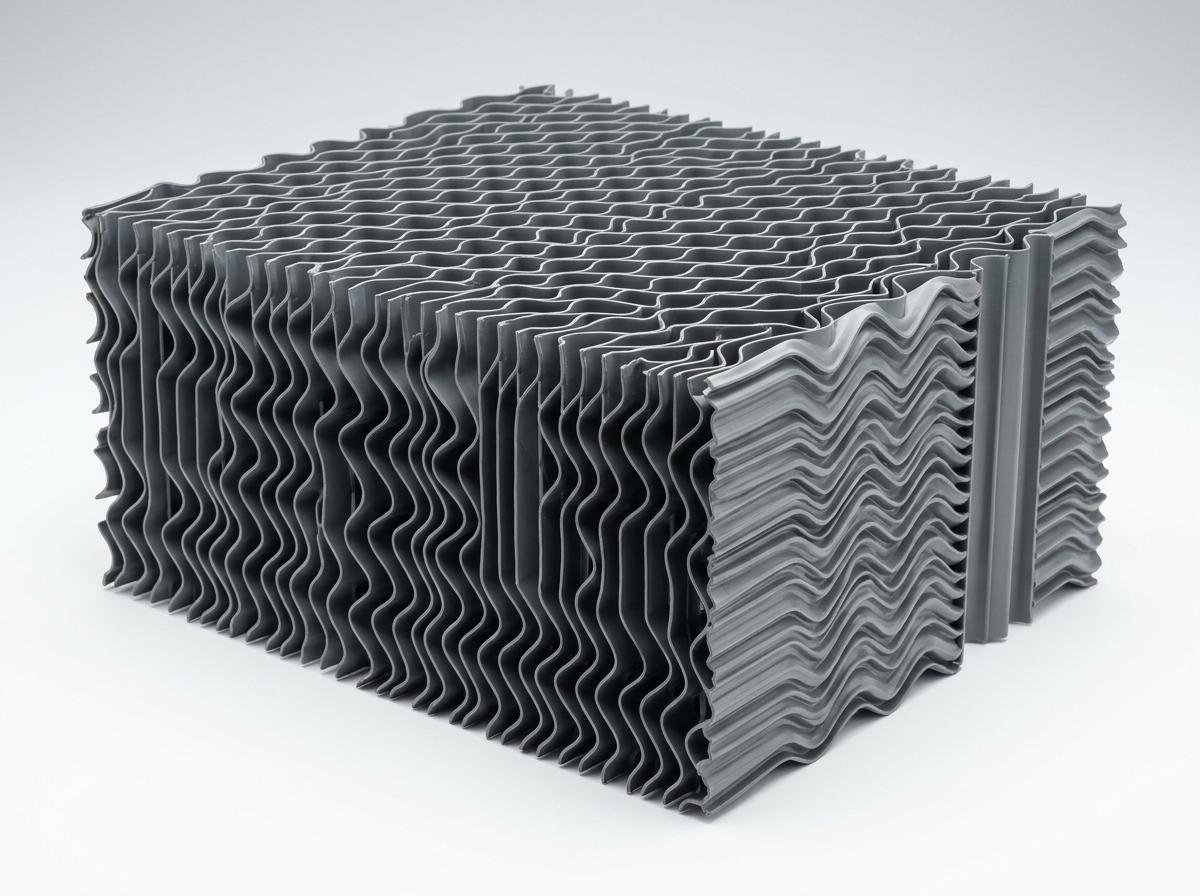

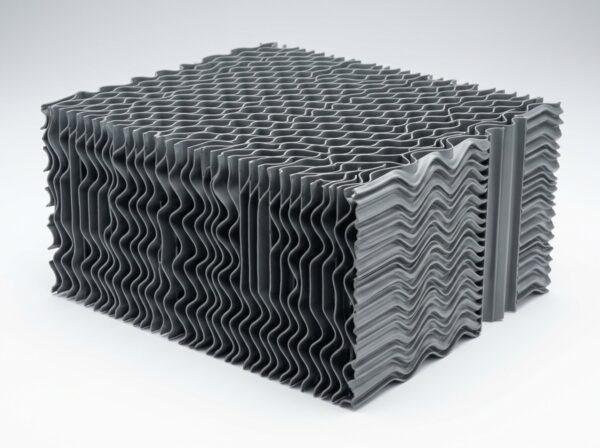

Advanced Cellular Honeycomb Geometry
We manufacture both cellular honeycomb blocks and heavy-duty blade-type drift eliminators. For example, our cellular packs utilize high-impact virgin PVC with UV inhibitors. Consequently, the modular packs maintain high mechanical stiffness and resist chemical embrittlement under continuous hot water exposure.
Key Advantages of PVC Drift Eliminators
Drift Loss Reduction & Energy Savings
- Maximum Water Conservation: The multi-pass sinusoidal wave profile captures escaping mist droplets. Therefore, it conserves thousands of liters of treated process water every day.
- Ultra-Low Air Pressure Drop: Our aerodynamic channel geometry ensures smooth airflow distribution. In contrast, poorly designed eliminators overload fan motors and reduce cooling tower efficiency.
- UV-Stabilized Virgin PVC Resin: We formulate all sheets with specialized anti-aging and UV-resistant additives. Consequently, our packs withstand intense sunlight and continuous outdoor exposure without brittleness.
- Interlocking Tongue-and-Groove Design: Modular blocks lock together tightly inside the tower plenum. Thus, they eliminate gaps and prevent water bypassing along casing walls.
- Biological & Chemical Resistance: The non-porous polymer surface resists algae spores and scale accumulation. Furthermore, it withstands standard chlorination biocides and cooling water treatment chemicals.
Technical Specifications: PVC Drift Eliminators
Standard Cooling Tower Engineering Parameters
| Technical Parameter | Specification & Engineering Standard |
|---|---|
| Product Type | Cellular Honeycomb Multi-Pass Drift Eliminator Modules |
| Raw Material | 100% Virgin Rigid PVC (Flame-retardant ASTM E84 & UV-stabilized) |
| Standard Block Dimensions | 600 mm (L) × 300 mm (W) × 150 mm (H) or custom site cut |
| Sheet Thickness | 0.25 mm to 0.45 mm before thermoforming (heavy industrial grade) |
| Drift Loss Guarantee | Less than 0.005% of total circulating cooling water rate |
| Continuous Temperature | Up to +55°C continuous working air-water temperature |
| Air Velocity Range | 2.0 m/s to 3.8 m/s without water carryover |
| Manufacturing Location | Vapi GIDC, Gujarat, India |
Industrial Applications & Tower Compatibility
Cross-Flow & Counter-Flow Tower Installations
Cooling tower engineers specify our PVC Drift Eliminators for newly fabricated towers and retrofit projects. Because effective drift removal prevents surrounding corrosion, it safeguards plant infrastructure:
- ✅ Chemical & Petrochemical Complexes: Plants install these modules to protect electrical switchyards from corrosive saline drift. In particular, they prevent accidental electrical flashovers.
- ✅ Thermal & Captive Power Stations: High-capacity induced draft towers use our packs for maximum water conservation. Meanwhile, the low pressure drop minimizes fan power draw.
- ✅ HVAC & Central Chiller Facilities: In addition, commercial facilities deploy our drift eliminators to comply with environmental health standards.
- ✅ Steel & Metal Foundries: They reliably capture water mist from open induction cooling loops.
- ✅ Textile & Pharmaceutical Plants: Furthermore, facilities use our modules to keep surrounding roofs dry and slip-free.
Leading PVC Drift Eliminator Manufacturer in Gujarat
Fast Delivery Across Industrial Belts
Nikunj Fibre Glass manufactures high-grade PVC drift eliminators in Vapi GIDC, Gujarat. In addition, we coordinate fast dispatch and on-site fitting guidance across all primary industrial hubs:
- Ahmedabad & Sanand: Vatva GIDC, Naroda, Odhav, Kathwada, Changodar, and Sanand
- Vapi & South Gujarat: Vapi GIDC, Sarigam, Umbergaon, Valsad, and Gundlav
- Surat, Ankleshwar & Dahej: Sachin GIDC, Pandesara, Ankleshwar GIDC, and Dahej PCPIR
- Vadodara & Central Gujarat: Makarpura GIDC, Nandesari, Halol, Savli, and Karjan
- Saurashtra Hubs: Rajkot, Jamnagar, Bhavnagar, and Morbi
Additionally, we manufacture PVC Cooling Tower Fills, ABS Sigma Fills, and complete FRP Cooling Towers. Therefore, contact Nikunj Fibre Glass today for competitive factory pricing and fast delivery.
Frequently Asked Questions (FAQ)
Common Technical Inquiries
Q1: Why are PVC Drift Eliminators essential in industrial cooling towers?
Drift eliminators capture entrained water droplets from the discharging airstream. Without them, cooling towers lose thousands of liters of treated water every day. Specifically, our cellular PVC modules reduce drift loss below 0.005%. In addition, they prevent nearby steel structures from rusting.
Q2: Can I install Nikunj Fibre Glass drift eliminators in my existing cooling tower?
Yes, our cellular blocks are drop-in replacements compatible with all counter-flow and cross-flow towers. During maintenance turnarounds, technicians place the lightweight 600 × 300 mm modules directly above the water distribution spray headers. Therefore, installation requires zero structural modification.
Q3: Does Nikunj Fibre Glass supply custom block sizes across Gujarat?
Yes, Nikunj Fibre Glass fabricates and cuts drift eliminator blocks to your exact cooling tower dimensions in Vapi GIDC, Gujarat. Moreover, our warehouse maintains ready stock for quick dispatch. Furthermore, we ship bulk orders across Ahmedabad, Surat, Vadodara, Ankleshwar, and nationwide across India.
